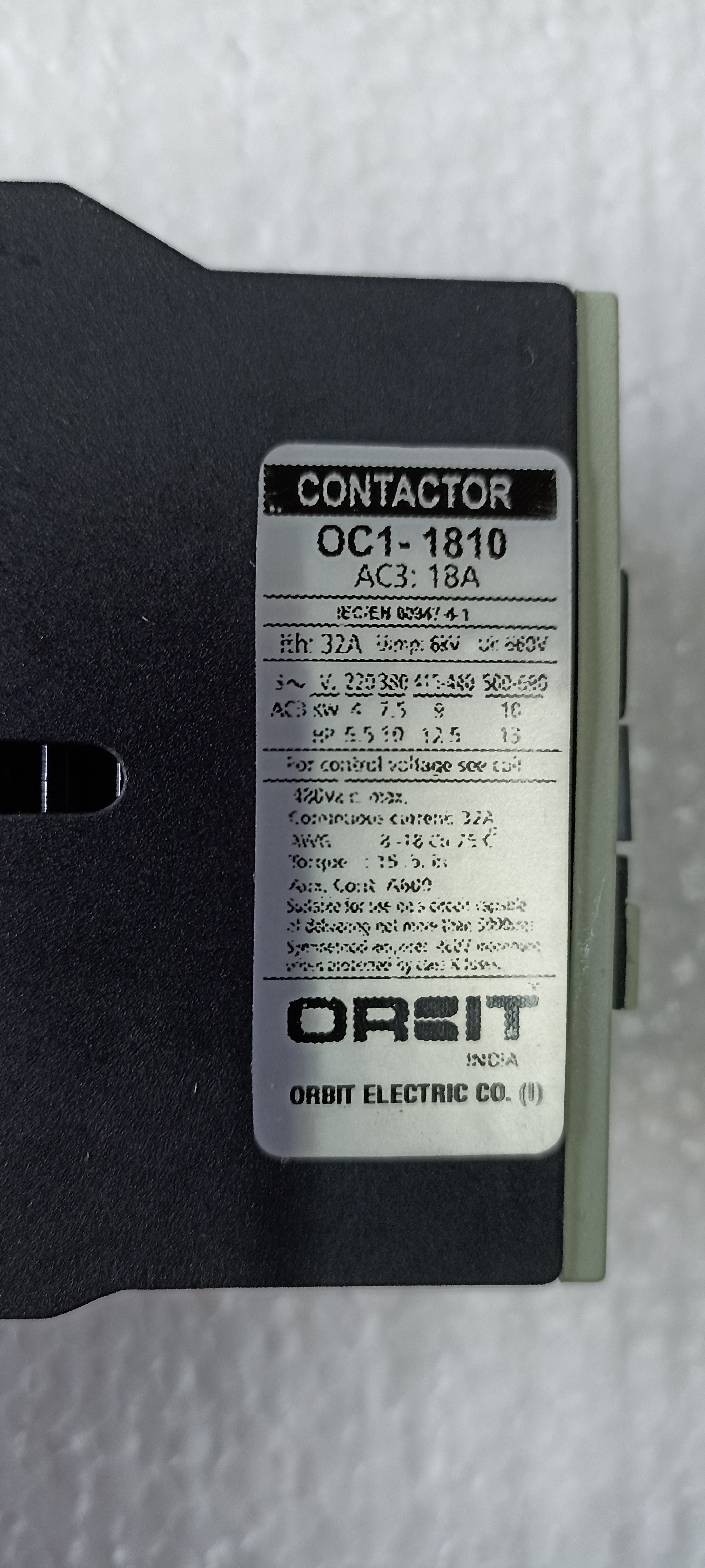

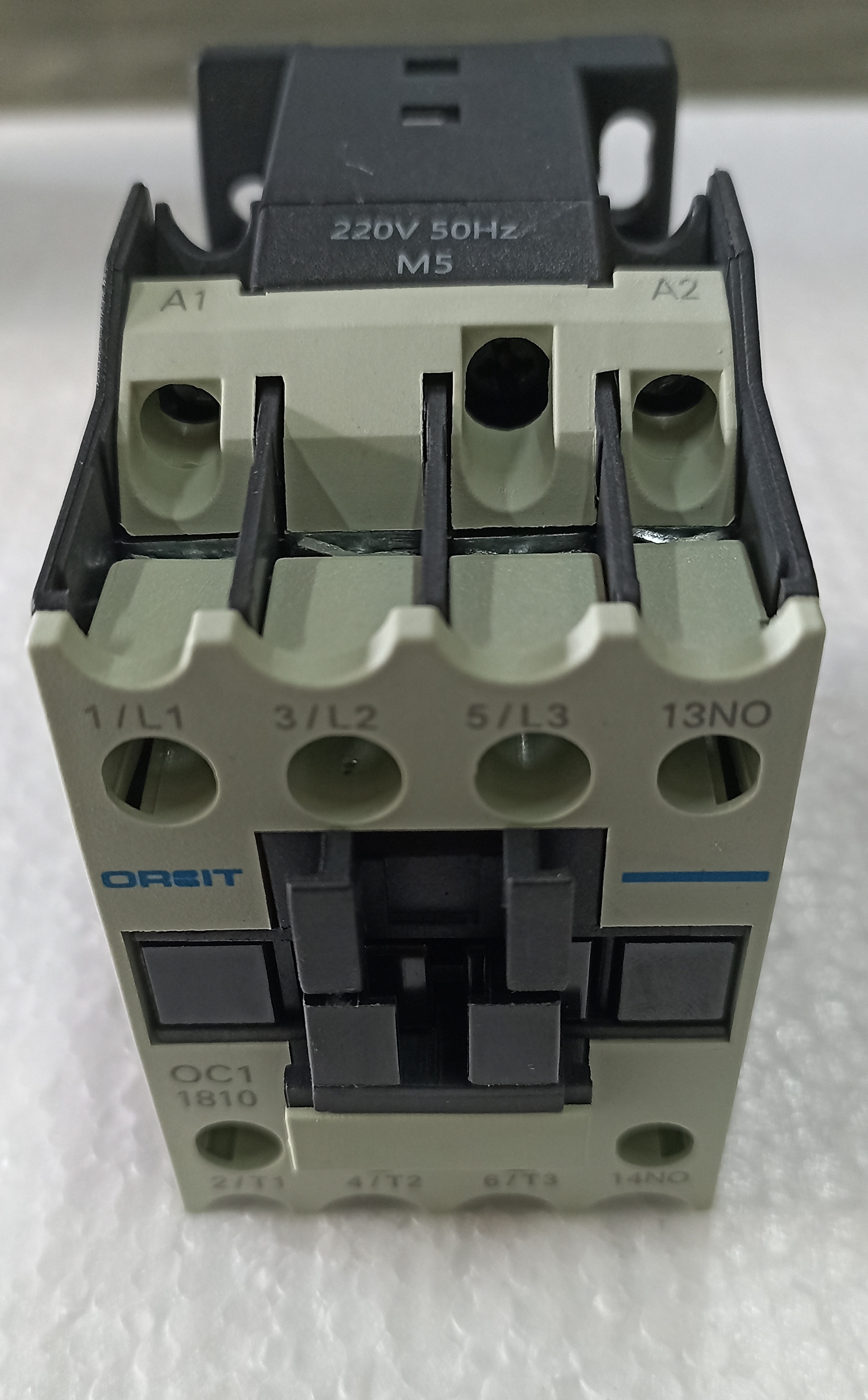

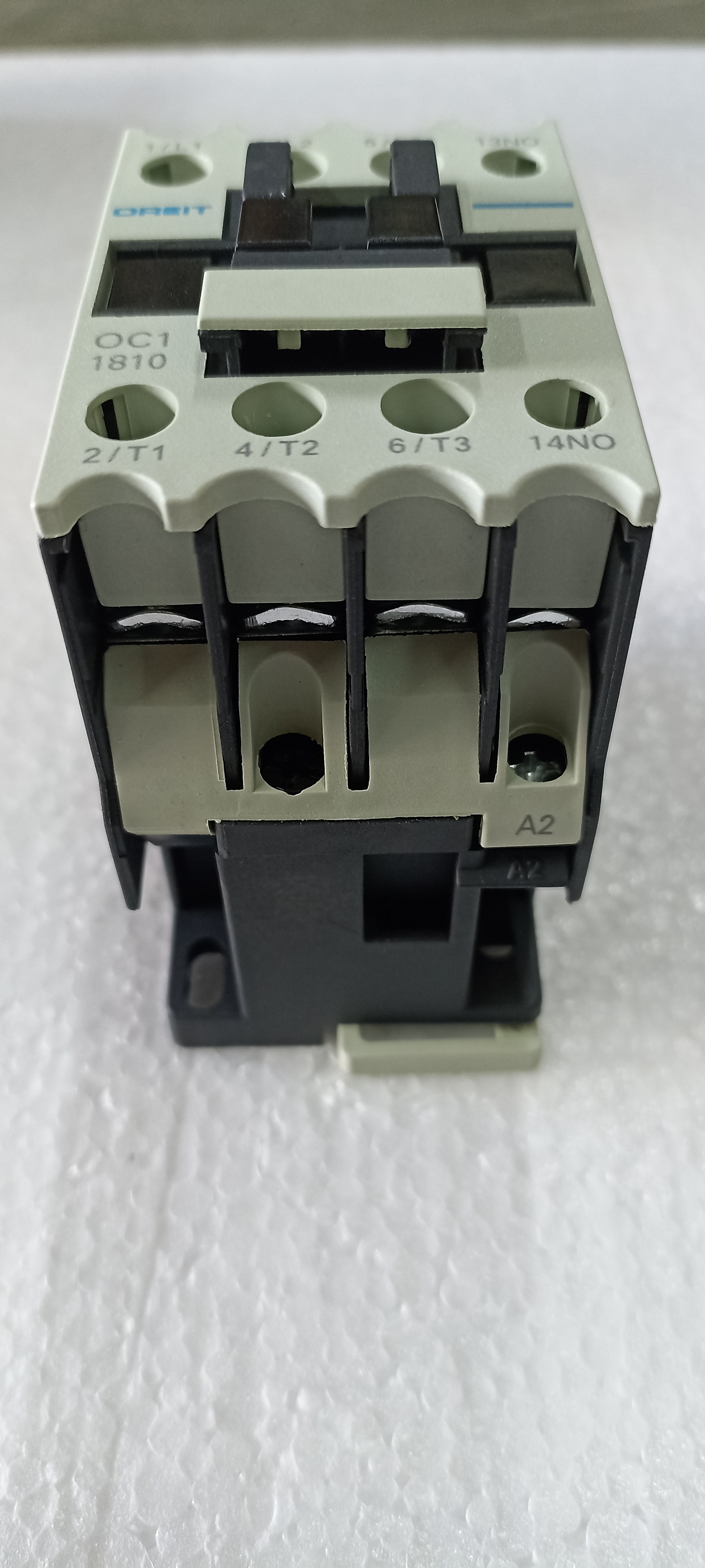

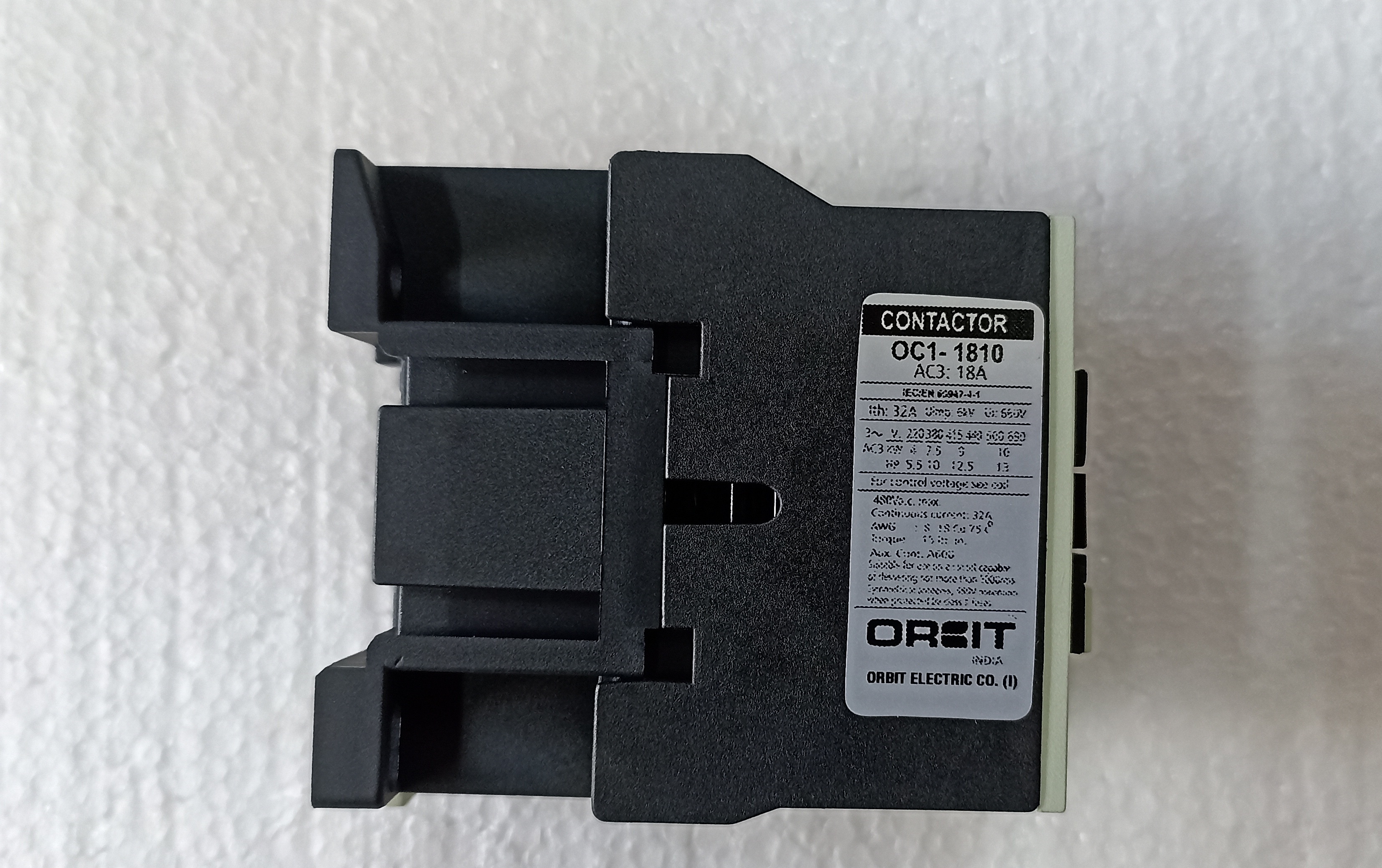

ORBIT 18A CONTACTOR

Get a Price/Quote

ORBIT 18A CONTACTOR Specification

Operating Temperature
-5°C to 55°C

Connector Type
Screw

Power Factor
0.8

Surface Finish
Smooth

Feature
DIN Rail Mountable, High Conductivity

Mounting Type
DIN Rail

Humidity %
≤ 85% RH

IP Rating
IP20

Efficiency
High

Insulation Material
Thermoplastic

Overheating Protection
YES

Shape
Rectangular

Product Type
Contactor

Application
Industrial Motor Control, AC & Lighting Control

Protection Level
IP20

Frequency (MHz)
50/60 Hz

Rated Voltage
415V AC

Energy Consumption
Low

Output Type
Mechanical

Color
White and Blue

Dimension (L*W*H)
60mm x 85mm x 44mm

Weight
230 g

Input Voltage
220V – 415V AC

Size
Standard

Phase
Three Phase

Material
Plastic Body with Copper Contacts

No Of Poles
3 Pole

Connection Type
Screw Terminal

Panel Cutout Size
35 mm DIN Rail

Standards
IS/IEC 60947-4-1

Mechanical Life
10 Million Operations

Coil Voltage
230V AC

Vibration Resistance
5-8 Hz, 2g

Control Circuit Voltage
220-230V AC

Storage Temperature
-25°C to 70°C

Auxiliary Contact
1 NO + 1 NC

Electrical Life
1 Million Operations

Contact Rating
18A

ORBIT 18A CONTACTOR Trade Information

Minimum Order Quantity
10 Number

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

About ORBIT 18A CONTACTOR

Orbit New 18A Contactor Available In Stock At Raj Electricals, Bhavnagar, Gujarat, India.

We are engaged in the supply, dealing, distribution, export and import of the widest range of electrical and electronic items that would suit every type of project, economy and medium.

Product Specification :-

Type :- Magnetic Contactor

Make :- Orbit

Condition :- New

Ampere :- 18A

Coil Voltage :- 220v/50 Hz

Aux. Contact :- 1 NO

We Supply Our Product In All Over India And Also In Foreign Countries.

For More Details Contact :9426838080.

Website:www.rajelectrics.com

Email: raj_electricals@hotmail.com.

Versatile and Robust Solution for Industrial Control

The ORBIT 18A Contactor is specifically designed for industrial control applications, including motor and AC/light circuit management. Its three-pole construction and compatibility with 220-415V AC input make it flexible for a range of settings. The compact, DIN rail mountable design ensures simple integration into control panels, while the plastic body with copper contacts provides both safety and high performance in demanding environments.

Superior Performance and Long Operational Life

With a mechanical life of up to 10 million operations and an electrical lifespan reaching 1 million cycles, the ORBIT 18A Contactor is built to last. Its IP20 protection level, smooth finish, and vibration resistance ensure reliable operation even in challenging conditions. Overheating protection and high power factor further enhance operational safety and efficiency, making it a dependable choice for heavy-duty industrial use.

FAQ's of ORBIT 18A CONTACTOR:

Q: How is the ORBIT 18A Contactor installed into a control panel?

A: The ORBIT 18A Contactor is DIN rail mountable, requiring a standard 35 mm DIN rail for installation inside the control panel. Simply align the contactor's mounting base with the rail and snap it securely in place. Screw terminals are provided for wire connections.

Q: What applications is the ORBIT 18A Contactor suitable for?

A: This contactor is primarily used for industrial motor control and AC or lighting circuits. Its three-pole configuration and high electrical endurance make it ideal for demanding industrial environments such as factories, commercial buildings, and process automation panels.

Q: When should the contactor be replaced or serviced?

A: The ORBIT 18A Contactor should be inspected periodically for signs of excessive wear, overheating, or contact erosion. Its mechanical life is up to 10 million cycles and it can handle up to 1 million electrical operations, but prompt replacement is advised if performance degrades or after reaching these operational limits.

Q: Where can the ORBIT 18A Contactor be used, considering environmental factors?

A: Engineered to function in temperatures from -5C to 55C and humidity up to 85% RH, the contactor suits installations in industrial locations across India. Its IP20 protection offers safety in standard environments, but it should not be used in outdoor or extremely dusty/wet conditions without additional enclosure.

Q: What benefits does the ORBIT 18A Contactor offer in terms of energy efficiency and safety?

A: The contactor features low energy consumption and a high power factor of 0.8, minimizing operational costs. Its design includes overheating protection, reliable copper contacts for high conductivity, and a thermoplastic insulation body, all contributing to enhanced safety and longevity.

Q: How should wiring and connections be managed during installation?

A: Use the provided screw terminals for secure wire connections. Ensure power is off before starting the wiring process, and follow the panel's wiring diagram along with national electrical standards to guarantee safe and compliant installation.
