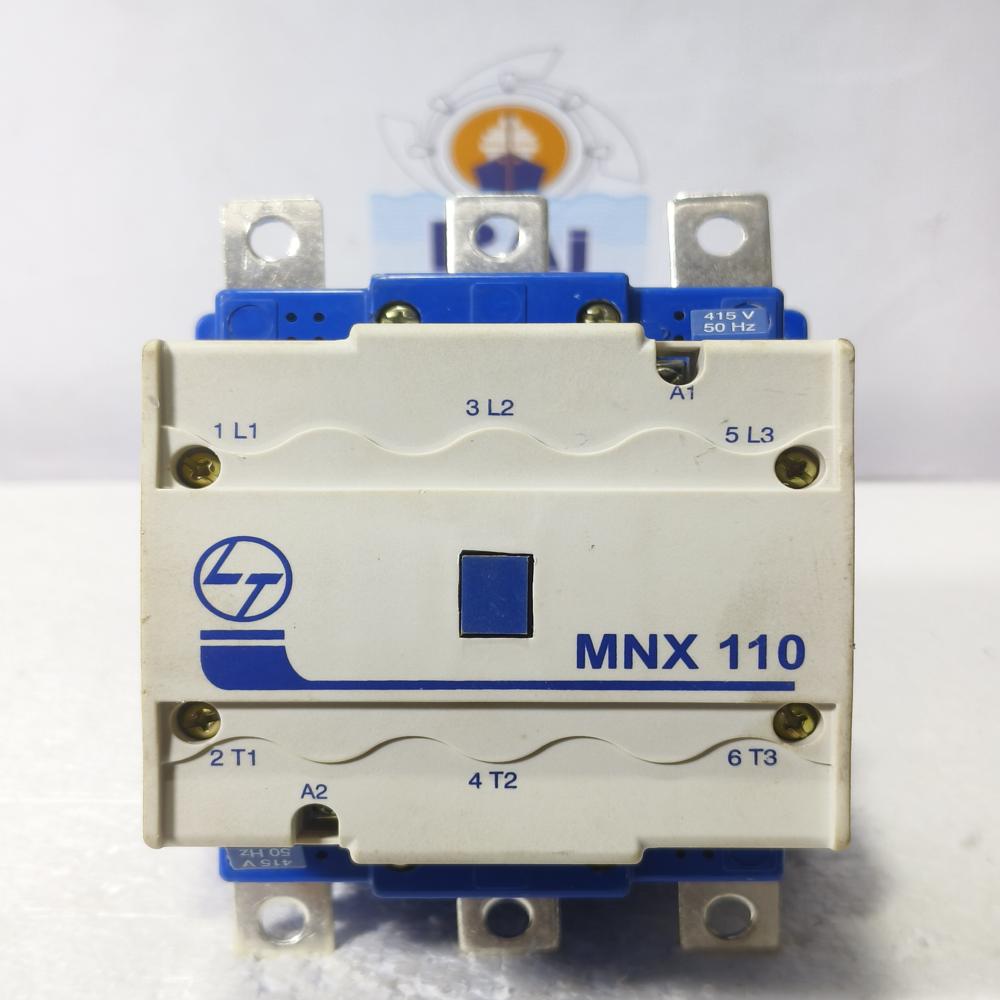

L&T MNX110 MAGNETIC CONTACTOR

Price 100.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Unit

L&T MNX110 MAGNETIC CONTACTOR Specification

Feature
High Electrical & Mechanical Endurance, Low Power Consumption, High Contact Reliability

Efficiency
High

Power Factor
0.85

Shape
Rectangular

Insulation Material
Thermoplastic

Mounting Type
DIN Rail / Panel Mount

Humidity %
Up to 95% RH (Non-Condensing)

Connector Type
Screw Clamp

Overheating Protection
Yes (with suitable thermal relay)

Surface Finish
Matte

IP Rating
IP20

Operating Temperature
-5C to +55C

Product Type
Magnetic Contactor

Application
Motor Control, Switching & Automation

Protection Level
AC-3 Duty, IEC 60947-4-1

Frequency (MHz)
50/60 Hz

Rated Voltage
690V AC

Energy Consumption
7.5 VA (Pick-up), 1.5 VA (Holding)

Output Type
Normally Open (NO), Normally Closed (NC)

Color
Grey & Black

Dimension (L*W*H)
115 mm x 120 mm x 120 mm

Weight
2.5 kg

Phase
Three Phase

Input Voltage
230/415V AC Coil Options

Size
Frame Size 4

No Of Poles
3 Pole

Material
High-grade Thermoplastic & Electrolytic Copper Contacts

Connection Type
Screw Terminal

Package Includes
Contactor, Auxiliary Block, Instruction Manual

Conforming Standards
IEC 60947-4-1, IS/IEC 60947-4-1

Electrical Endurance
1 Million Operations at AC-3

Control Circuit Voltage
Up to 690V AC

Coil Voltage Options
24V, 48V, 110V, 230V, 415V AC/DC

Mechanical Endurance
Over 10 Million Operations

Altitude
Up to 3000 meters

Auxiliary Contacts
1NO + 1NC (Expandable up to 4NO + 4NC)

Rated Current
110A at AC-3, 415V

L&T MNX110 MAGNETIC CONTACTOR Trade Information

Minimum Order Quantity
1 Unit

FOB Port
all india port

Payment Terms
Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T)

Supply Ability
10 Units Per Month

Delivery Time
3 Days

Sample Available
Yes

Packaging Details
Box

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About L&T MNX110 MAGNETIC CONTACTOR

Contactor 3 phase for industrial use and this are alang based material but in full working condition with photos attached.

L&T MNX95 MAGNETIC CONTACTOR

PRODUCT SPECIFICATION:

BRAND: L&T
PRODUCT NAME: MAGNETIC CONTACTOR
MODEL: MNX95
AC-1: 160A
Ui: 1000V
PHASE 3
POLE:
IEC 60497-4-1
APPLICATION: INDUSTRIAL

Superior Performance and Endurance

With a mechanical endurance of over 10 million operations and an electrical endurance of up to 1 million operations at AC-3 duty, the L&T MNX110 Magnetic Contactor assures long-term reliability for industrial applications. It is crafted with high-quality thermoplastic insulation and electrolytic copper contacts, ensuring efficient and reliable switching for motors and automation systems.

Flexible Installation and Versatile Control

The MNX110 features DIN rail and panel mounting compatibility, providing flexibility for various installation preferences. Its auxiliary contacts can be expanded up to 4NO + 4NC, allowing for comprehensive control and signaling in complex motor control circuits. The contactor supports coil voltages up to 690V AC, suited to diverse industrial requirements.

Enhanced Safety and Efficiency Features

Engineered with operator and equipment safety in mind, the MNX110 holds an IP20 rating and supports overheating protection when paired with a suitable thermal relay. The device's high efficiency, low power consumption, and matte surface finish contribute to long-term cost savings and system reliability even in challenging environments.

FAQ's of L&T MNX110 MAGNETIC CONTACTOR:

Q: How do I install the L&T MNX110 Magnetic Contactor?

A: The MNX110 can be installed using either DIN rail or panel mounting, making it adaptable to various control panel layouts. Please refer to the included instruction manual for detailed, step-by-step installation guidance.

Q: What are the main applications for this contactor?

A: This contactor is primarily used for motor control, switching, and automation in industrial environments. It handles high-powered equipment reliably, complying with IEC 60947-4-1 standards.

Q: When should the auxiliary contacts be expanded?

A: Auxiliary contacts should be expanded if your application requires more signaling or control functions, such as interlocking or status indication. The MNX110 allows up to 4NO + 4NC auxiliary contacts for such requirements.

Q: Where can this contactor be used regarding environmental conditions?

A: The MNX110 is designed to operate at altitudes up to 3000 meters, in temperatures from -5C to +55C, and can handle humidity up to 95% RH (non-condensing), making it suitable for a wide range of Indian and international climates.

Q: What benefits does the MNX110 offer over standard contactors?

A: It offers high mechanical and electrical endurance, low power consumption, a wide range of coil voltages, and high reliability. Its robust insulation and high-quality construction result in fewer maintenance needs and longer service life.

Q: How does the MNX110 ensure safety and efficiency during operation?

A: The contactor's IP20 protection, high-grade thermoplastic insulation, energy-efficient design, and compatibility with thermal relays for overheating protection collectively safeguard both users and equipment.

Q: What is the process for selecting the appropriate coil voltage for my application?

A: Determine your control circuit voltage requirements (options include 24V, 48V, 110V, 230V, and 415V AC/DC). Choose the coil version of the MNX110 that matches your power supply to ensure safe and reliable operation.
